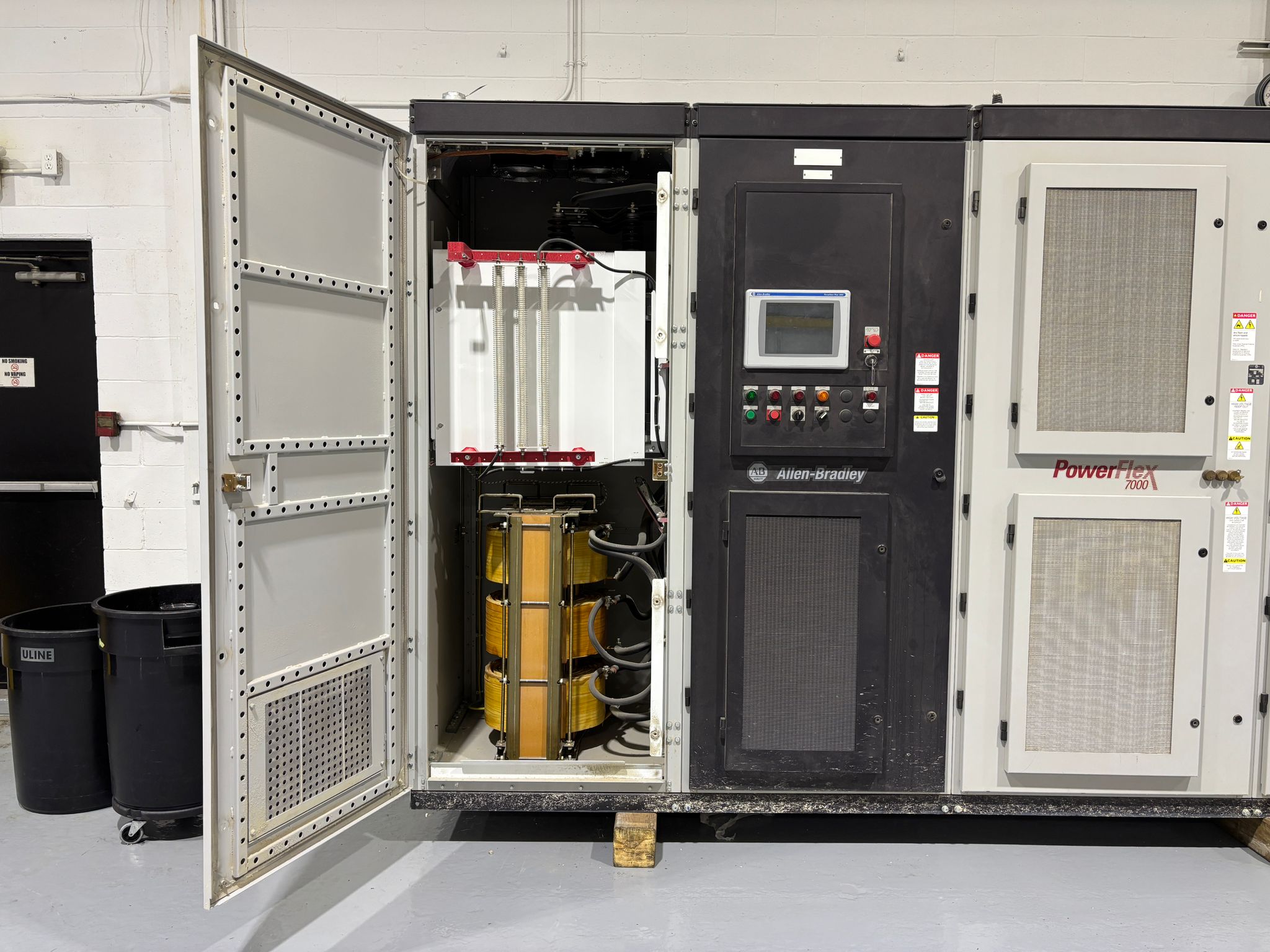

Description: Allen-Bradley PowerFlex 7000 1500HP Medium Voltage Drive 7000-A215DEAJ6-RPDTD Series R.
Allen-Bradley PowerFlex 7000 1500 HP 4160V Medium-Voltage AC Drive – 7000-A215DEAJ6-RPDTD Series R
Manufacturer: Allen-Bradley / Rockwell Automation
Product Family: PowerFlex 7000

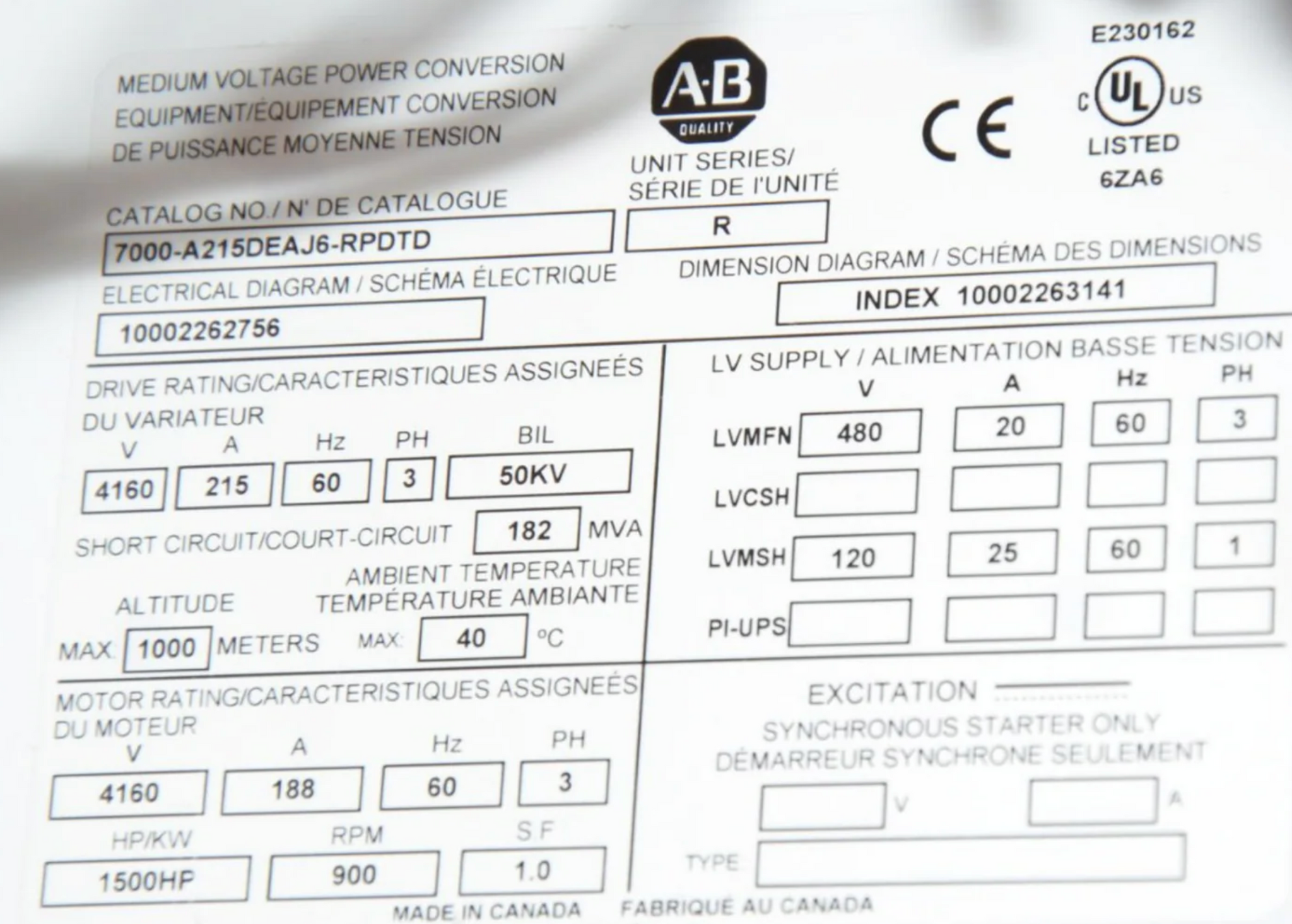

Catalog Number: 7000-A215DEAJ6-RPDTD
Series: R
Structure Series Number: 5500C01473-101
Electrical Diagram: 10002262756
Dimension Drawing Index: 10002263141
Frame: Bulletin 7000 B-Frame
Cooling: Air-cooled
Enclosure: Type 1 / IP21
Configuration: AFE Rectifier with Direct-to-Drive Technology
Drive Ratings
-
Rated input voltage: 4160V
-
Continuous drive current: 215A
-
Frequency: 60 Hz
-
Phases: 3
-
Basic impulse level: 50 kV BIL
-
Short-circuit rating: 182 MVA
-
Maximum altitude: 1000 metres
-
Maximum ambient temperature: 40°C
-
Service-duty classification: Normal Duty
-
Normal-duty capability: 110% overload for one minute, once every ten minutes
Motor Ratings
-
Rated motor voltage: 4160V
-
Rated motor current: 188A
-
Motor power: 1500 HP
-
Rated motor speed: 900 RPM
-
Frequency: 60 Hz
-
Phases: 3
-
Service factor: 1.0
Low-Voltage and Control-Power Ratings
-
Main low-voltage supply: 480V, 20A, 60 Hz, three-phase
-
Additional control supply: 120V, 25A, 60 Hz, single-phase
Power Conversion Configuration
The RPDTD designation identifies this drive as a PowerFlex 7000 Direct-to-Drive configuration incorporating:
-
Active Front End rectifier
-
Integral line reactor
-
Direct-to-Drive DC-link configuration
-
PWM inverter
-
SGCT power-semiconductor technology
Rockwell’s Direct-to-Drive technology allows the drive to be connected directly to a medium-voltage supply and compatible medium-voltage motor without requiring a separate isolation transformer when the supply and motor voltages correspond.

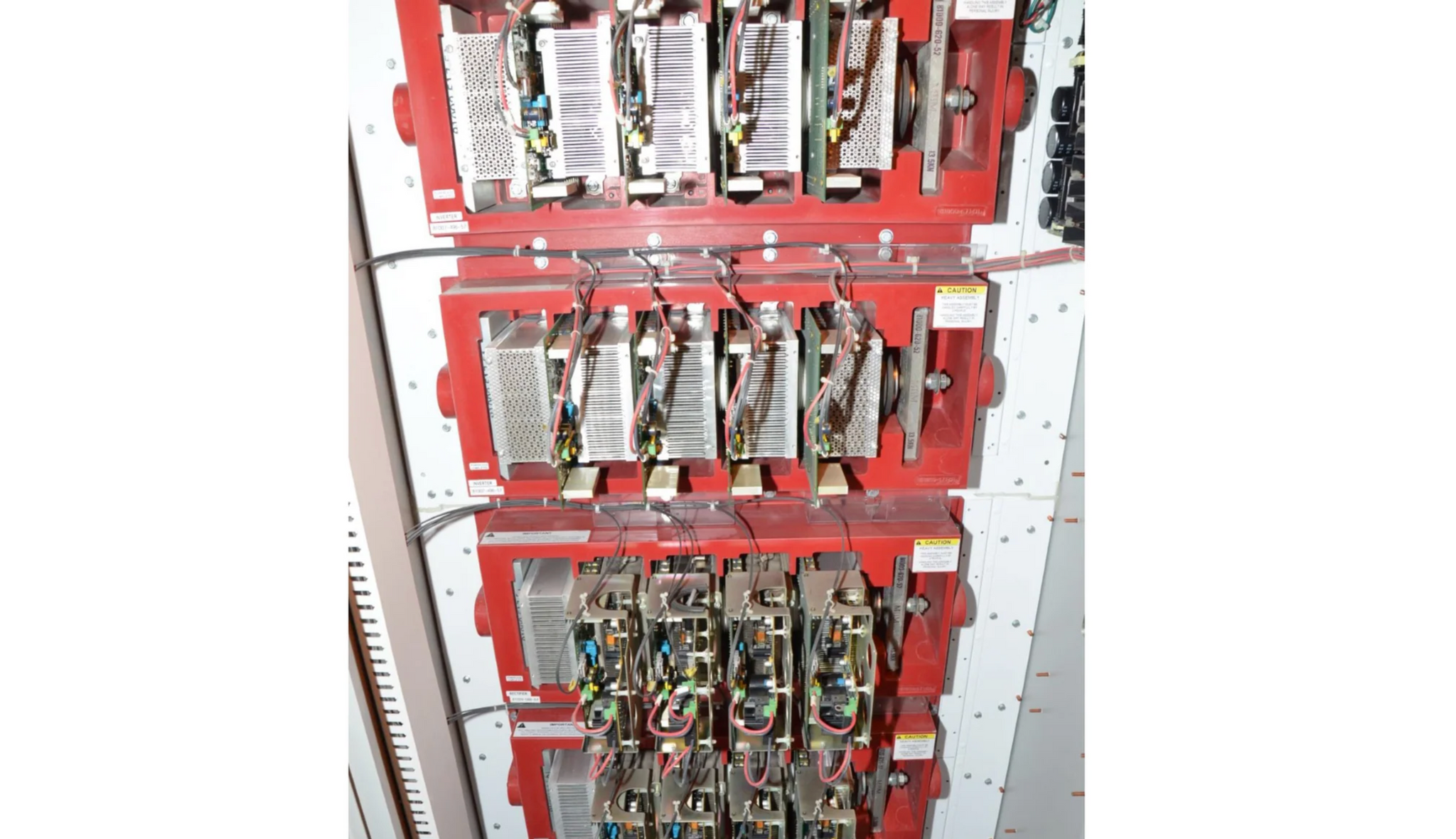

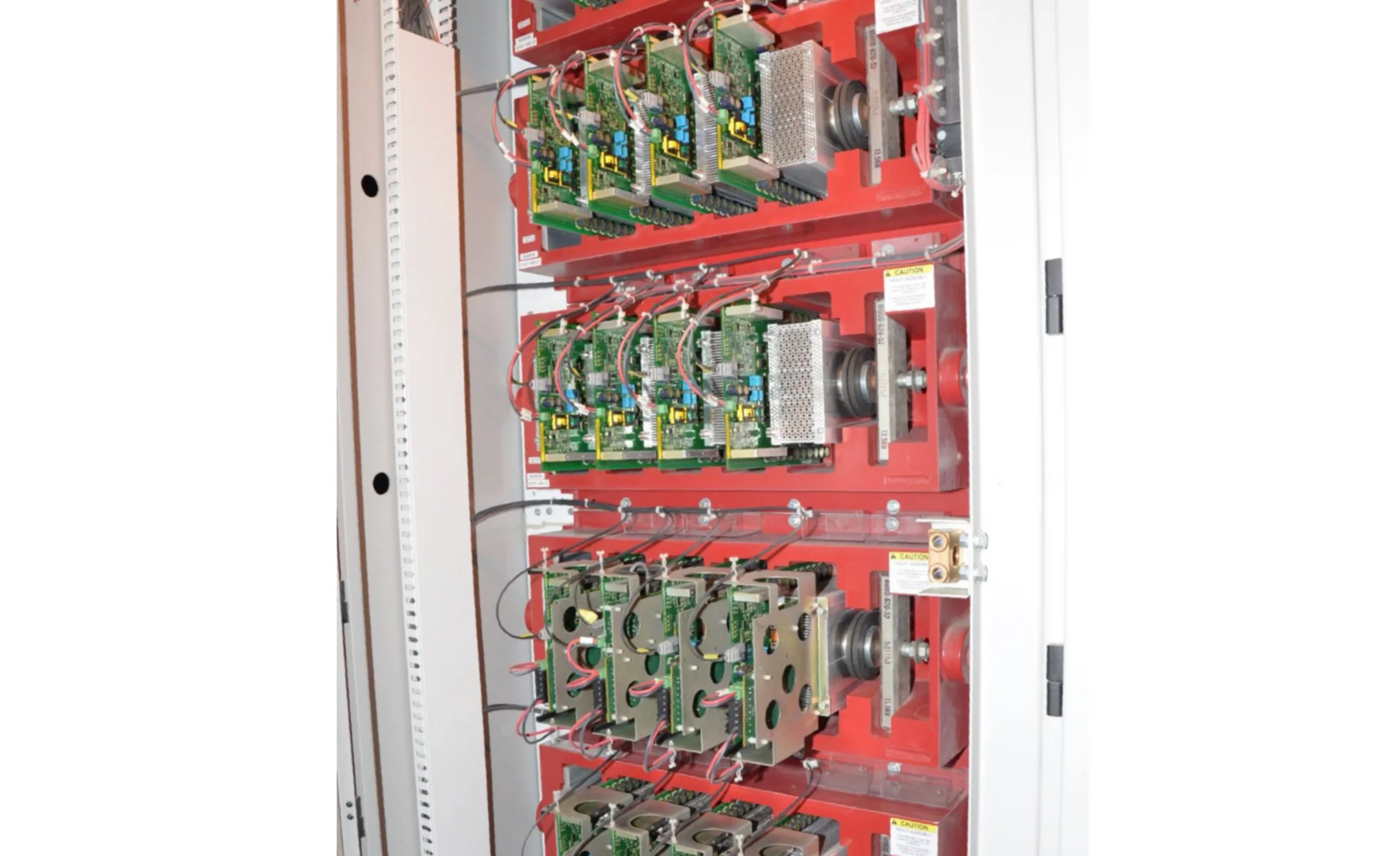

PowerCage Assemblies
The drive contains Rockwell PowerCage inverter and rectifier modules with four-device SGCT arrangements. The following exact PowerCage assembly numbers have been identified inside this drive:
-
81007-496-57
-
81007-496-58
-
81009-088-63
-
81009-088-64
These are complete Rockwell power-semiconductor assembly identifiers. Rockwell describes PowerCage modules as modular inverter and rectifier assemblies designed to provide access to the SGCT power devices and their associated internal components.
Technology and Construction
-
Medium-voltage variable-frequency drive
-
Air-cooled B-Frame construction
-
Active Front End line-side converter
-
Direct-to-Drive topology
-
SGCT rectifier and inverter power devices
-
PWM inverter output
-
Regenerative power capability without external braking-resistor hardware
-
Modular PowerCage inverter and rectifier assemblies
-

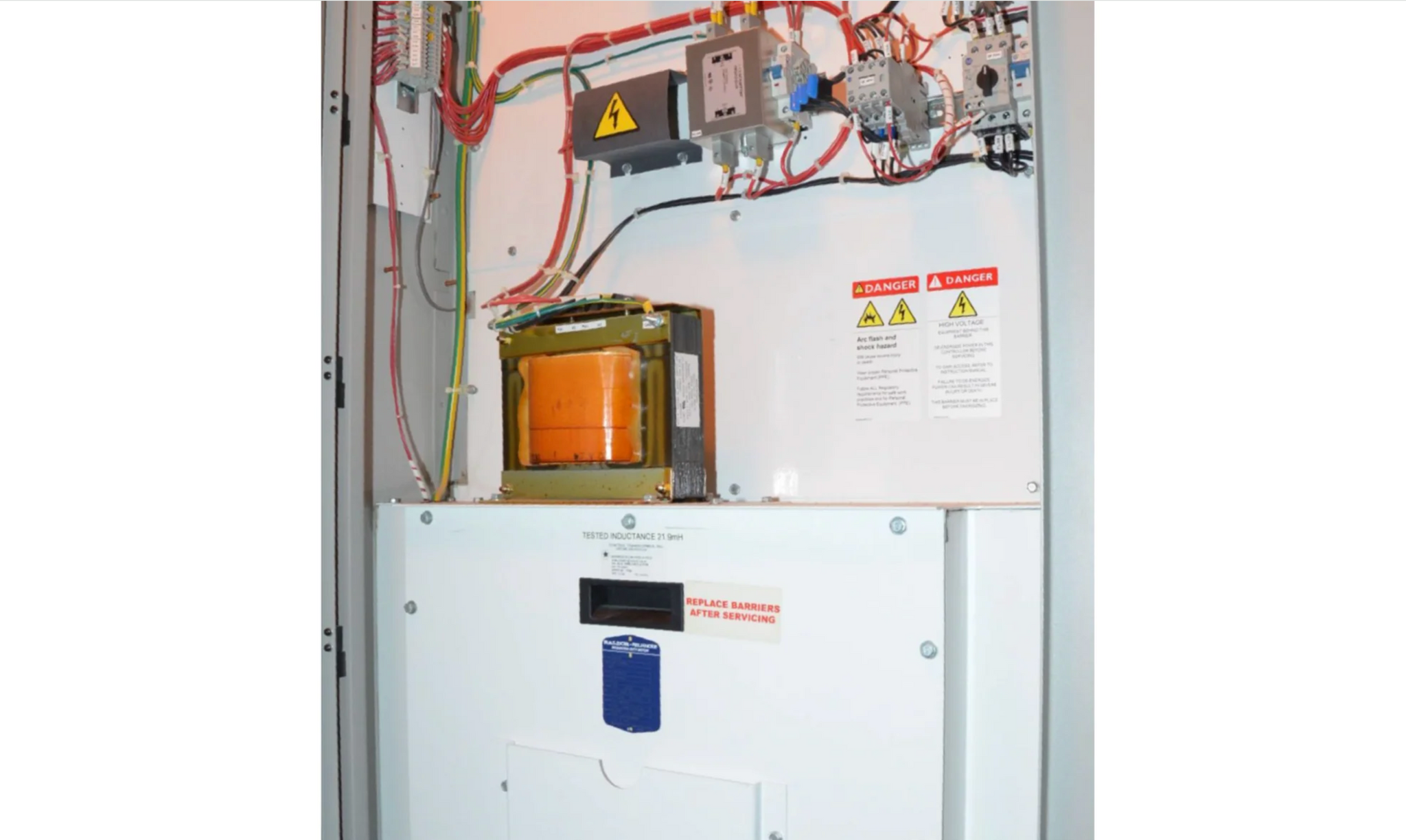

Separate low-voltage control compartment
-

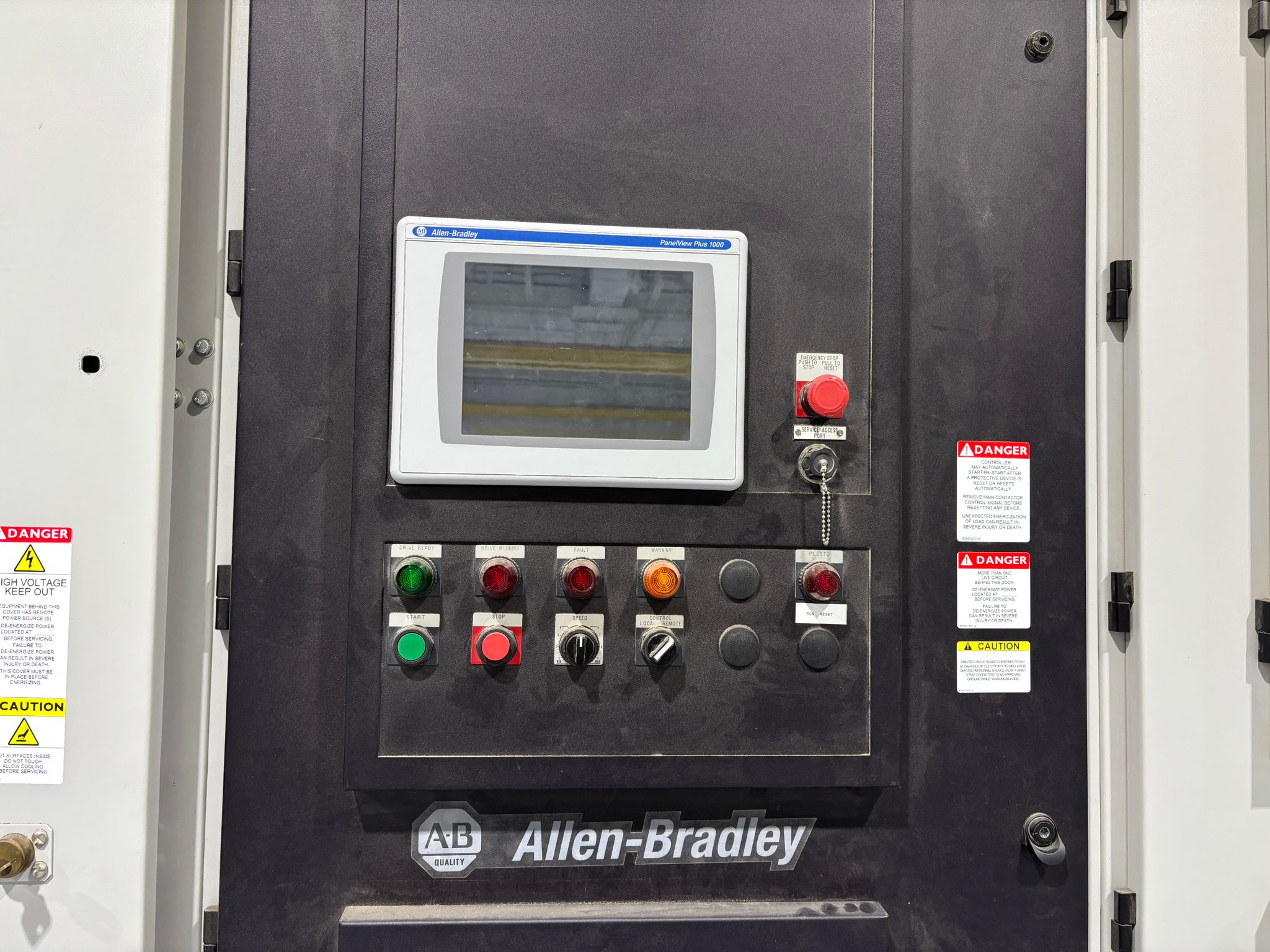

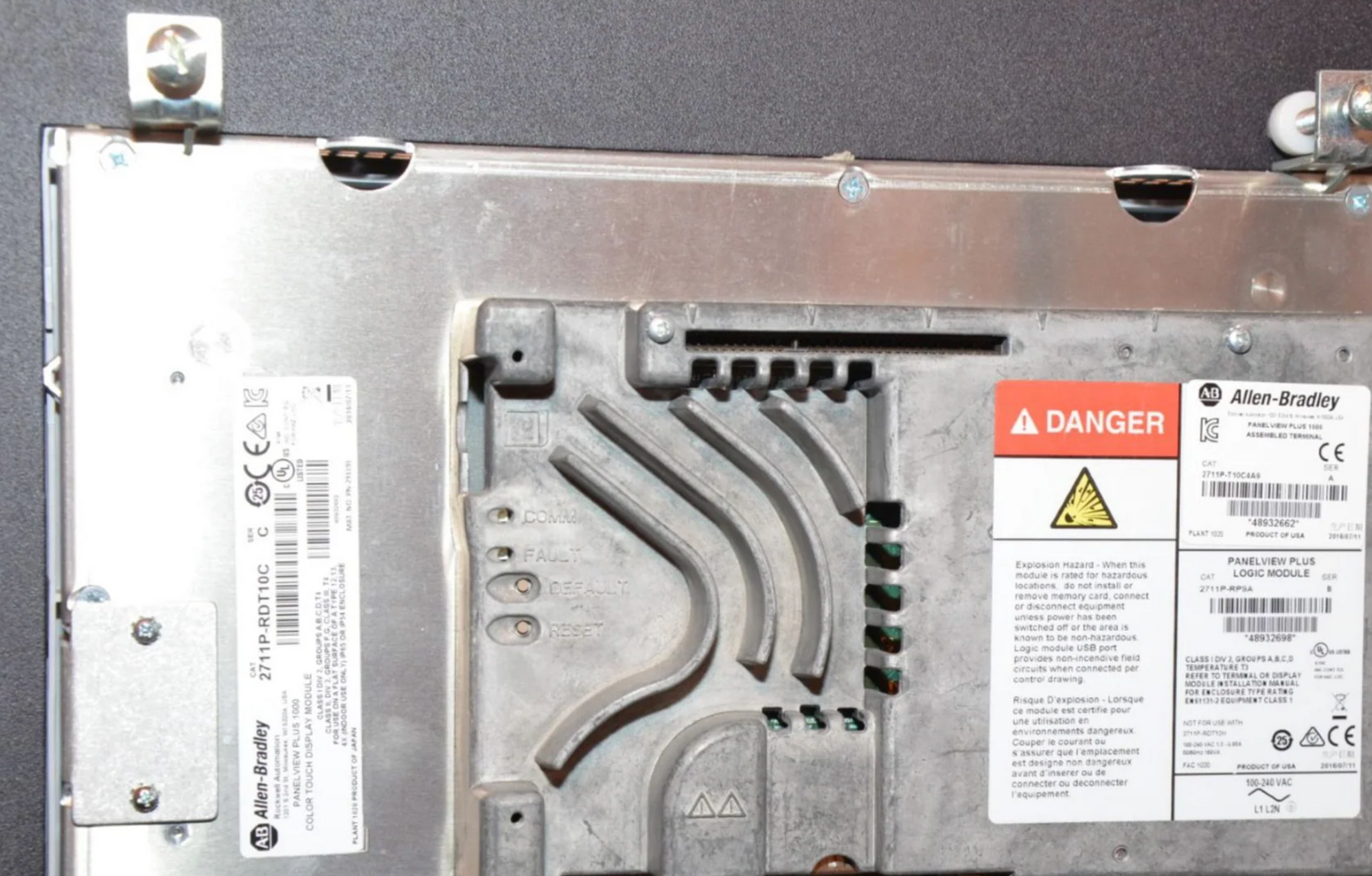

Door-mounted operator interface
-
Gasketed Type 1 / IP21 enclosure
-
Copper, tin-plated power and ground bus construction
Catalog-Number Breakdown
-
7000: PowerFlex 7000 B-Frame air-cooled drive
-
A: Normal Duty, maximum 1000-metre altitude and 40°C ambient
-
215: 215A continuous drive-current rating
-
D: Type 1 / IP21 enclosure
-
E: 4160V voltage class
-
A: 60 Hz configuration under the applicable legacy catalog format
-
J6: Factory control-power/CPT configuration
-
RPDTD: AFE rectifier with integral line reactor and Direct-to-Drive DC link
Important Parts Identification Note
The PowerCage assembly numbers are provided exactly as recorded from the installed Rockwell assemblies. Individual SGCT, snubber-capacitor and snubber-resistor replacement part numbers are not encoded in the main drive catalog number and should be verified from the component labels, drive-specific electrical drawings or Rockwell bill of materials.
Reference: Rockwell Automation PowerFlex 7000 Medium Voltage AC Drives Technical Data, Publication 7000-TD010.
